WLA-210XP

LINE ARRAY ELEMENT

WLA-210XP

  • 2 x 10″ LF Drivers
  • EVO-Fold waveguide
  • Custom phase plugs
  • Birch plywood construction
  • Bi-amp and Passive modes
  • Tough-Tone paint finish
  • Optional WLA-210X Common Fly Frame

WLA-210SUB

  • 2 x 15″ LF drivers
  • 4.0″ voice coils
  • 145 dB Max SPL
  • 18 mm Birch plywood construction
  • Integral rigging system
  • 1200 watts Continuous
  • Tough-Tone paint finish

Using the advanced hardware technologies deployed in the WLA-210A, the new WLA-210XP is the passive variant.

WLA-210XP features custom phase plugs and the extra-ordinary Wharfedale Pro EVO-Fold waveguide.  Combined, these lead to a huge reduction in the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array.

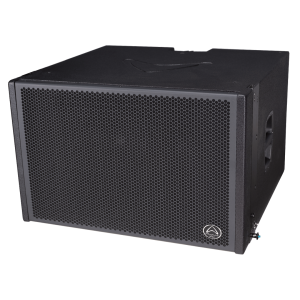

The matching dual 15″ passive subwoofer (pictured), WLA-210XSUB, is the perfect partner for WLA-210XP.  Meanwhile, the optional WLA-210X Common Fly Frame completes the system and allows for versatile system configurations of either subwoofer or array elements or both..

The WLA-210XP system is supported with downloadable FIR presets for DP-F / N series amplifiers.  FIR presets are also available for the SC-48 FIR Loudspeaker Management System for use with other amplifiers such as XR series or CPD series.  For detailed system design WLA-210XP is also supported with downloadable .gll files for Ease Focus.

WLA-210XP has been designed and engineered in the UK and is targetted at the touring and fixed install sectors.

WLA-210XP

1600 watts
Programme
  • Dual 10″ passive
  • 138 dB Max SPL @ 1 meter
  • 15 mm / 18 mm Birch plywood construction
  • 100° x 10° dispersion
  • 800 W LF + 90 W HF Continuous
  • 1600 W LF + 180 W HF Programme
  • 3200 W LF + 360 W HF Peak

WLA-210SUB

2400 watts
Programme
  • 2 x 15″ LF drivers with 4.0″ voice coils
  • 145 dB Max SPL
  • 18 mm Birch plywood construction
  • Integral rigging system
  • 1200 watts Continuous
  • 2400 watts Programme
  • 4800 watts Peak
  • 4 Ω impedance

Phase PLugs

The two crafted phase plugs result in a more consistent frequency response off axis.

The design is usually unseen behind the grille…..but the impact these have on the system performance is stunning.

EVO-FOLD

The central 3.0″ HF compression driver is directly coupled to our EVO-Fold waveguide.

EVO-Fold reduces the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array. The HF compression driver is loaded to a unique EVO-Fold horn. The EVO-Fold horn combines a unique folded and manifold design. The most advanced FEM technology has been used to create this.

The high-mid energy exits produce a uniphasic sound in the widest range of frequencies. And visually, the detail of the EVO-Fold waveguide is a work of art.

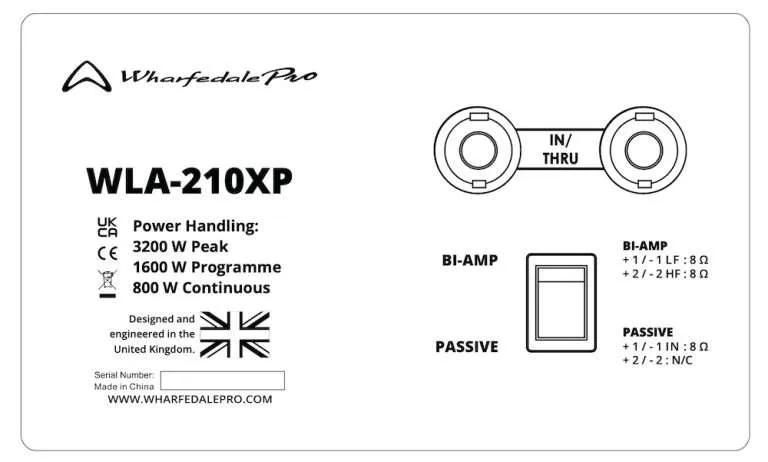

BI-AMP & PASSIVE MODES

In BI-AMP mode, two power amplifier channels can be used, one for each section of the loudspeaker (HF compression driver and LF transducers). DSP (Digital signal processing) is used to separate the audio signal into specific frequency bands for each amplifier channel, powering only the corresponding driver section inside the loudspeaker. This gives you the advantage of being able to select the optimal power specifications and use independent limiter and EQ settings for each driver, resulting in more granular system control and a safer, more efficient, and protected system.

In PASSIVE mode, a single amplifier channel can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal passive crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier channel is powering both the HF compression driver and the LF transducers. The internal crossover takes care of both the frequency and power separation.

The Wharfedale Pro Preset Library includes factory presets for both BI-AMP and PASSIVE modes, these must be used for optimal loudspeaker performance and protection.

TALKING OF AMPS.....

For maximum results, our DP-F and DP-N series of ampllifiers not only have downloadable presets for a WLA-210XP system, but these presets also include FIR filters

TALKING OF DSP .....

There are also downloadable presets for the SC-48 FIR processor.

Just download them here…..

Dual 10"

At the heart of the WLA-210XP are 2 x 10″ custom Wharfedale Pro LF drivers.

Designed and Engineered in the UK, they deliver the power to impress.

About the clarity

The HF compression driver delivers additional clarity and performance with enhanced definition.

It is custom made by Wharfedale Pro and is coupled to the EVO-Fold waveguide resulting in 100° x 10° dispersion.

Optional FLY FRAME

Arrays can be assembled using only WLA-210XP line array elements or with the WLA-210SUB Subwoofers at the top of the array.

The WLA-210X Common Fly frame supports up to 12 x WLA-210XP elements and a WLA-210SUB.

EASE DOWNLOAD

WLA-210XP models are supported with EASE .gll files.

Looking for an ACTIVE alternative ?

CLOSE up

Learn about the technical features of the WLA-210XP Line Array System

Optional WLA-210X
Common Fly Frame.

WLA-210SUB
Dual 15” passive sub
makes a practical
and powerful system.
2400 W Programme.

1.5 mm steel grilles
protect the drivers inside

WLA-210XP
Dual 10"
passive array element

The 3.0” HF
compression driver

in each element is
directly coupled to the
EVO-Fold waveguide.

EVO-Fold waveguide
reduces the usual phase
issues that traditional
2-way line arrays have
due to them having the drive units
physically some distance apart in the array.

Custom Phase Plugs
deliver a wider and
more consistent mid-range
horizontal coverage and
better coupling between the
LF and HF
in the crossover area.

Custom Phase Plugs
deliver a wider and
more consistent mid-range
horizontal coverage and
better coupling between the
LF and HF
in the crossover area.

WLA-210XP

Balanced XLR
line input

Balanced XLR
link output

Internal DSP
with FIR filters

Network connection
using RS485.
Download the software
from the bottom of this
page.

USB update port.
For service staff only

AC Input
using Neutrik ™
powerCON connectors

AC Link
using Neutrik ™
powerCON connectors

SPECIFICATIONS

Model NameWLA-210XPWLA-210XSUB
System TypePassivePassive
Configurationtwo-wayDual 15” Subwoofer
Frequency Response (+/-3 dB)58-20 KHz39 Hz – 900 Hz
Frequency Range (-10 dB)50-20 KHz35 Hz -1.5 KHz
Sensitivity (2.83 v / 1 m)102 dB108 dB
Calculated Maximum SPL @1 m138 dB145 dB
System Rated Impedance8 Ω4 Ω
Low Frequency Transducer
Size260 mm / 10”2 x 381 mm / 2 x 15”
Voice Coil Size 65 mm / 2.5”101.6 mm / 4”
Rated Impedance16 Ω X 2 (Parallel)8 Ω x 2
LF Power (re:AES2-2012)2 x 400 W2 x 600 W
High Frequency Transducer
HF Driver TypeCompression Driver
Voice Coil Size75 mm / 3”
Exit Size1.4″
Diaphragm MaterialTitanium
Rated Impedance8 Ω
HF Power (re:AES2-2012)90 W
Nominal Coverage (H x V)100 H x 10 V EVO-Fold®
Power
System Continuous PowerHF:90 W/LF:800 W1200 W
System Programme PowerHF:180 W/LF:1600 W2400 W
System Peak PowerHF:360 W/LF:3200 W4800 W
Crossover frequency1.5 KHz
Bi-Amp Mode SwitchYes
Input Connector2 x speakON2 x speakON
Hardware3 points Integral adjustable
rigging 0°-10°
Integral side plate
non adjustable
Enclosure
Enclosure Material15 mm,18 mm plywood18 mm Plywood
FinishTOUGH-TONE PaintTOUGH-TONE Paint
Grille Material & Finishsteel1.2 mm Black Steel
Dimensions – (Unpacked)
Height Front314 mm / 12.4”485 mm / 19.1″
Height Rear240.2 mm / 9.46”485 mm / 19.1″
Width760 mm / 29.9”760 mm / 29.9″
Depth504 mm / 19.84”716 mm / 28.2″
Dimensions – (Packed)
Height404 mm / 15.9”575 mm / 22.6″
Width Front855 mm / 33.7”850 mm / 33.5″
Width Rear855 mm / 33.7”850 mm / 33.5″
Depth594 mm / 23.4”806 mm / 31.7″
Weight
Net Weight (kg / lbs)38.8 kg / 77.6 lbs63.0 kg / 138.4 lbs
Gross Weight (kg / lbs)41.3 kg / 90.9 lbs68.0 kg / 149.6 lbs
