WLA-210A
Active line array
Shipping Q2 2023.
WLA-210A
- 800 W continuous
- Dual 10″ active array element
- Internal DSP with FIR presets
- Network connection using RS485 protocol
- 133 dB Max SPL @ 1 m
- EVO-Fold waveguide
- Custom phase plugs
WLA-210SUBA
- 2000 Watts continuous
- Dual 15″ subwoofer
- Internal DSP with 8 presets
- Network connection using RS485 protocol
- 145 dB Max SPL @ 1 m

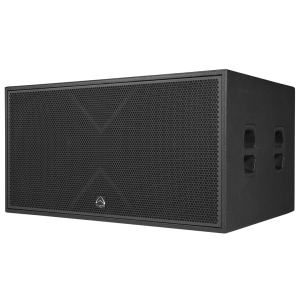

WLA-218BA
- 2000 Watts continuous
- Dual 18″ subwoofer
- Internal DSP with FIR presets
- Network connection using RS485 protocol
- 148 dB Max SPL @ 1 m
Active Line Array System
WLA-210A is more than just another dual 10″ active line array system. It incorporates the latest hardware and software technologies from Wharfedale Pro.
The WLA-210A Array Element features custom phase plugs and the extra-ordinary EVO-Fold waveguide. Combined, these lead to a huge reduction in the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array.
The WLA-210A element features an internal 800 W continuous power amplifier and advanced DSP presets including FIR filters. These presets make system tuning simple depending on the physical configuration and size of the array.
The matching dual 15″ active subwoofer, WLA-210SUBA, features a 2000 W continuous internal amplifier, custom Wharfedale Pro drivers and powerful internal DSP making this subwoofer the perfect partner for WLA-210A.
Both loudspeakers can be controlled remotely through software which gives GUI control over the DSP parameters of each individual element.
The optional WLA-210X Common Fly Frame completes the system and allows for multiple system configurations.
The WLA-210A system has been designed and engineered in the UK and is targetted at the touring and fixed install sectors.
WLA-210A
- Dual 10″ active
- 133 dB Max SPL @ 1 meter
- 15 mm / 18 mm Birch plywood construction
- 100° x 10° dispersion
- 700 W LF + 100 W HF Continuous
- 1300 W LF + 200 W HF Peak
- 8 x DSP presets including FIR
WLA-210SUBA
- Dual 15″ LF drivers with 4.0″ voice coils
- 145 dB Max SPL @ 1 meter
- 15 mm / 18 mm Birch plywood construction
- Integral rigging system
- 2000 watts Continuous
- 4000 watts Peak
- 8 x DSP presets
WLA-218BA
- Dual 18″ LF drivers with 4.0″ voice coils
- 148 dB Max SPL @ 1 meter
- 18 mm Birch plywood construction
- 2000 watts Continuous
- 4000 watts Peak
- 8 x DSP presets
Phase PLugs
The two crafted phase plugs result in a more consistent frequency response off axis.
The design is usually unseen behind the grille…..but the impact these have on the system performance is stunning.
EVO-FOLD

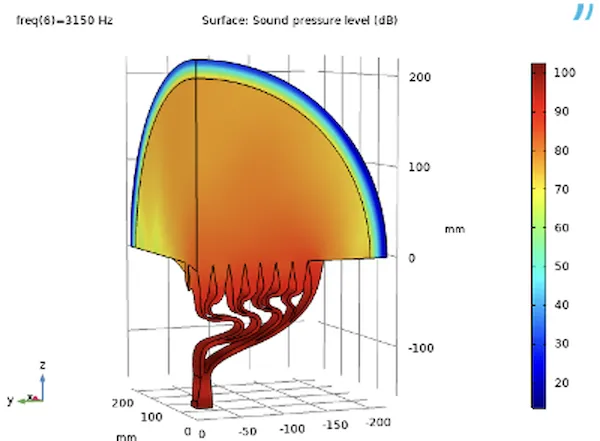

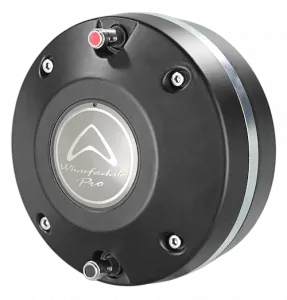

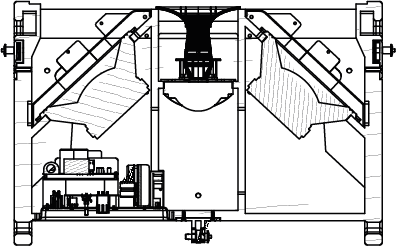

The central 3.0″ HF compression driver is directly coupled to our EVO-Fold waveguide.
EVO-Fold reduces the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array. The HF compression driver is loaded to a unique EVO-Fold horn. The EVO-Fold horn combines a unique folded and manifold design. The most advanced FEM technology has been used to create this.
The high-mid energy exits produce a uniphasic sound in the widest range of frequencies. And visually, the detail of the EVO-Fold waveguide is a work of art.

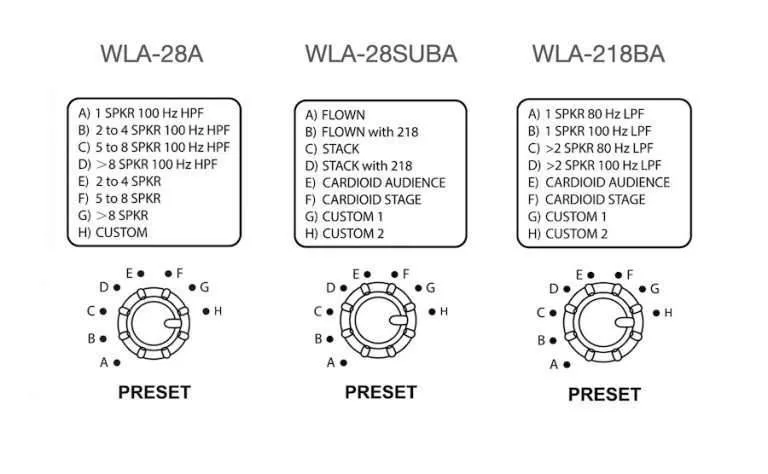

Internal DSP with FIR
8 x DSP Presets – built in – including FIR.
Easy to get great results – fast.
For the subwoofers (WLA-210SUBA and WLA-218BA) the AUDIENCE or STAGE presets can be used in an Inverted Stack Gradient array configuration.
Software control
The network connection uses RS485 protocol and gives GUI control over the DSP parameters of each element in the array.
Dual 10"
At the heart of the WLA-210A are 2 x 10″ custom Wharfedale Pro LF drivers.
Designed and Engineered in the UK, they deliver the power to impress.
About the clarity
The HF compression driver delivers additional clarity and performance with enhanced definition.
It is custom made by Wharfedale Pro and is coupled to the EVO-Fold waveguide resulting in 100° x 10° dispersion.

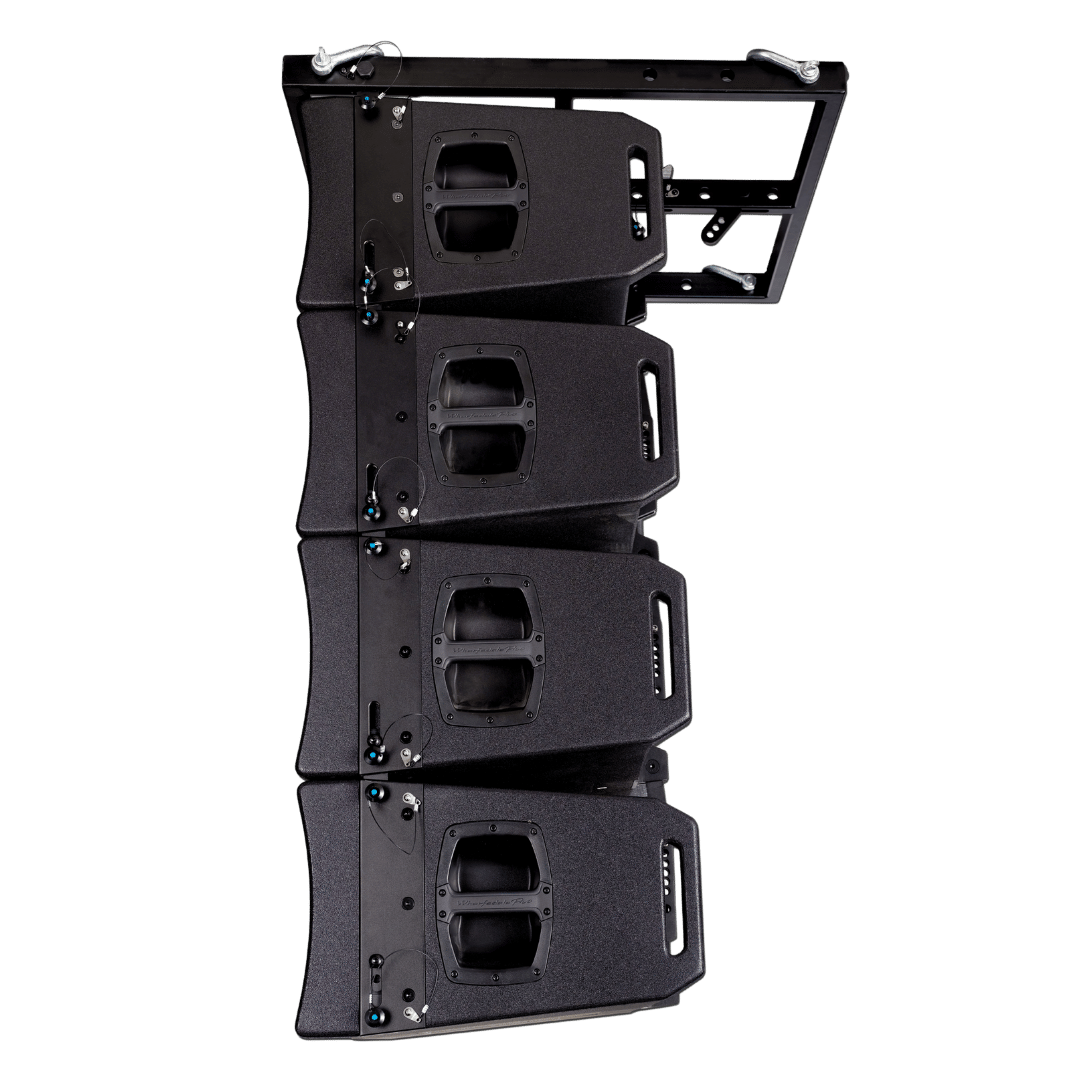

Optional FLY FRAME
Arrays can be assembled using only WLA-210A line array elements or with the WLA-210SUBA Subwoofers at the top of the array.
The WLA-210X Common Fly frame supports up to 12 x WLA-210A elements and a WLA-210SUBA.
EASE DOWNLOAD
WLA-210A models are supported with EASE .gll files.
CLOSE up
Learn about the technical features of the WLA-210A Line Array System
Optional WLA-210X
Common Fly Frame.
WLA-210SUBA
Dual 15” active sub
makes a practical
and powerful system.
2000 W continuous.
1.5 mm steel grilles
protect the drivers inside
WLA-210A
Dual 10"
active array element
The 3.0” HF
compression driver
in each element is
directly coupled to the
EVO-Fold waveguide.
EVO-Fold waveguide
reduces the usual phase
issues that traditional
2-way line arrays have
due to them having the drive units
physically some distance apart in the array.
Custom Phase Plugs
deliver a wider and
more consistent mid-range
horizontal coverage and
better coupling between the
LF and HF
in the crossover area.
Custom Phase Plugs
deliver a wider and
more consistent mid-range
horizontal coverage and
better coupling between the
LF and HF
in the crossover area.
WLA-210A
Balanced XLR
line input
Balanced XLR
link output
Internal DSP
with FIR filters
Network connection
using RS485.
Download the software
from the bottom of this
page.
USB update port.
For service staff only
AC Input
using Neutrik ™
powerCON connectors
AC Link
using Neutrik ™
powerCON connectors
WLA-210SUBA
WLA-218BA
SPECIFICATIONS
| Model Name | WLA-210A | WLA-210SUBA | WLA-218BA |
|---|---|---|---|
| System Type | Active 2 x 10” 2-way Bi-Amplified | Active 2 x 15″ Subwoofer | Active 2 x 18″ Subwoofer |
| Frequency Response (+/-3 dB) | 55 Hz – 20 KHz | 39 Hz-125 HZ | 30 Hz-100 Hz |
| Frequency Range (-10 dB) | 50 Hz – 20 KHz | 35 Hz-163 KHz | 25 Hz-150 Hz |
| Loudspeaker Sensitivity @ 1 W / 1 m) | 101 dB | 108 dB | 109 dB |
| Maximum SPL(peak)(@1 m) | 133 dB | 145 dB | 148 dB |
| Waveguide Type | EVO-Fold® | ||
| Nominal Coverage (H x V) | 100° x 10° | – | – |
| Signal Processing | DSP based, 8 FIR presets | DSP based, 8 presets | DSP based, 8 presets |
| Preset list | A) 1 SPKR 100 Hz HPF B) 2 to 4 SPKR 100 Hz HPF C) 4 to 8 SPKR 100 Hz HPF D) >8 SPKR 100 Hz HPF E) 2 to 4 SPKR F) 4 to 8 SPKR G) >8 SPKR H) CUSTOM | A) FLOWN B) FLOWN with 218 C) STACK D) STACK with 218 E) CARDIOID AUDIENCE F) CARDIOID STAGE G) CUSTOM H) CUSTOM | A) 1 SPKR 80 Hz LPF B) 1 SPKR 100 Hz LPF C) >2 SPKR 80 Hz LPF D) >2 SPKR 100 Hz LPF E) CARDIOID AUDIENCE F) CARDIOID STAGE G) CUSTOM H) CUSTOM |
| Amplifiers | |||
| Amplifier Design | Class D | Class D | Class D |
| Power Rating: | 1600 W Peak (1400 W LF + 200 W HF), 800 W Continuous (700 W LF + 100 W HF) | 4000 W Peak / 2000 W Continuous | 4000 W Peak / 2000 Continuous |
| Power On Protection | Power switch on/off mute | Power switch on/off mute | Power switch on/off mute |
| Thermal Protection | Amplifier Shut Down. Auto Reset | Amplifier Shut Down. Auto Reset | Amplifier Shut Down. Auto Reset |
| Low Line Voltage Shut Down | 60% Nominal Line Voltage | 60% Nominal Line Voltage | 60% Nominal Line Voltage |
| Driver Protection | Independent LF/ HF RMS, Peak Limiters and DC | RMS, Peak Limiters and DC | RMS, Peak Limiters and DC |
| DC and Short Protection | Yes | Yes | Yes |
| Limiter Indicator | Red LED | Red LED | Red LED |
| Signal Indicator | Green LED | Green LED | Green LED |
| Power/Active Indicator | White LED | White LED | White LED |
| Find Function Indicator | Blue LED | Blue LED | Blue LED |
| Input Sensitivity | +4 dBu | +4 dBu | +4 dBu |
| Maximum Input Level | +18 dBu | +18 dBu | +18 dBu |
| Input Impedance | Balanced: 10 KΩ | Balanced: 10 KΩ | Balanced: 10 KΩ |
| AC Power details – Power Supply | High Efficiency Switching Mode Power Supply | High Efficiency Switching Mode Power Supply | High Efficiency Switching Mode Power Supply |
| Connectors | |||
| Input Connector | Balanced socket XLR Connector | Balanced socket XLR Connector | Balanced socket XLR Connector |
| Link Connector | Balanced pin XLR Connector | Balanced pin XLR Connector | Balanced pin XLR Connector |
| UPDATE | USB Type B | USB Type B | USB Type B |
| NETWORK (RS485) | RJ45 | RJ45 | RJ45 |
| AC Power Options | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic |
| AC Input Connector | powerCON | powerCON | powerCON |
| AC Loop Through Connector | powerCON | powerCON | powerCON |
| Hardware – Rigging | Integral side plate adjustable rigging 0°-10° | Integral side plate | – |
| Enclosure Material and finish | 15 mm / 18 mm Plywood | 15 mm / 18 mm Plywood | 18 mm Plywood |
| Colour Options | Black Rhino Paint | Black Rhino Paint | Black Rhino Paint |
| Grille Material & Finish | 1.5 Steel | 1.5 Steel | 1.5 Steel |
| Unpacked dimensions – Height | 314 mm / 12.4″ 190 mm / 7.5″ | 485 mm / 19.1″ | 560 mm / 22.0″ |
| Width (Front) | 760 mm / 29.92″ | 760 mm / 29.9″ | 1065 mm / 41.9″ |
| Width (Back) | 760 mm / 29.92″ | 760 mm / 29.9″ | 1065 mm / 41.9″ |
| Depth | 503 mm / 19.8″ | 775 mm / 30.67″ | 756 mm / 29.8″ |
| Packed Dimensions – Height | 404 mm / 15.9″ | 575 mm / 22.6″ | 638 mm / 25.1″ |
| Width (Front) | 855 mm / 33.7″ | 850 mm / 33.5″ | 1138 mm / 44.8″ |
| Width (Back) | 855 mm / 33.7″ | 850 mm / 33.5″ | 1138 mm / 44.8″ |
| Depth | 594 mm / 23.4″ | 865 mm / 34.6″ | 829 mm / 326.0″ |
| Net Weight (Kg / lbs) | 39.5 Kg / 86.9 lbs | 68.0 Kg / 149.6 lbs | 78.0 Kg / 171.6 lbs |
| Gross Weight (Kg / lbs) | 42.5 Kg / 93.5 lbs | 72.5 Kg / 159.5 lbs | 92.04 Kg / 202.4 lbs |
