SL Series Studio / Live mixers with built in USB interface
- Full Duplex 2 In/2 Out 16-Bit 48 KHz USB Interface
- Dedicated USB Recording Bus (Excluding SL 424)
- Switchable Line/USB Return Channels (Excluding SL 424)
- Studio Grade Phantom Powered Microphone Pre-Amps
- Headphone output
- PFL for All Channels (excluding SL424USB)
- Control Room and Headphone Outputs
- Ultra Musical 3-Band EQ with High Pass Filters
- Digital FX (excluding SL424USB)
- 2 Auxiliary Sends (1 Send on SL 424)
- Stereo Return with Level Control
- Pan and Balance Controls
- Master Output XLR & TRS Connectors
Designed to cater for a wide range of mid format mixing duties, the SL Series includes many features suited to both live sound and home studio applications.
A high quality class-compliant 2-input 2-output 16-bit / 48 KHz USB interface features on all models, with larger models featuring a flexible record bus and dedicated return channel that is great for live and home recording.
Studio grade microphone preamps are used throughout the range and have balanced XLR inputs. All channels also deliver balanced/unbalanced TRS line level connectivity. In addition, all of the mono channels on larger models have a TRS insert point.
An ultra musical 3-band EQ is available on all channels, with an additional high pass filter on the mono channels. The SL824 USB and SL1224 USB feature a built in FX processor with 16 presets, giving unlimited creative potential. The on-board FX is supplemented by a dedicated FX send and 2 auxiliaries.

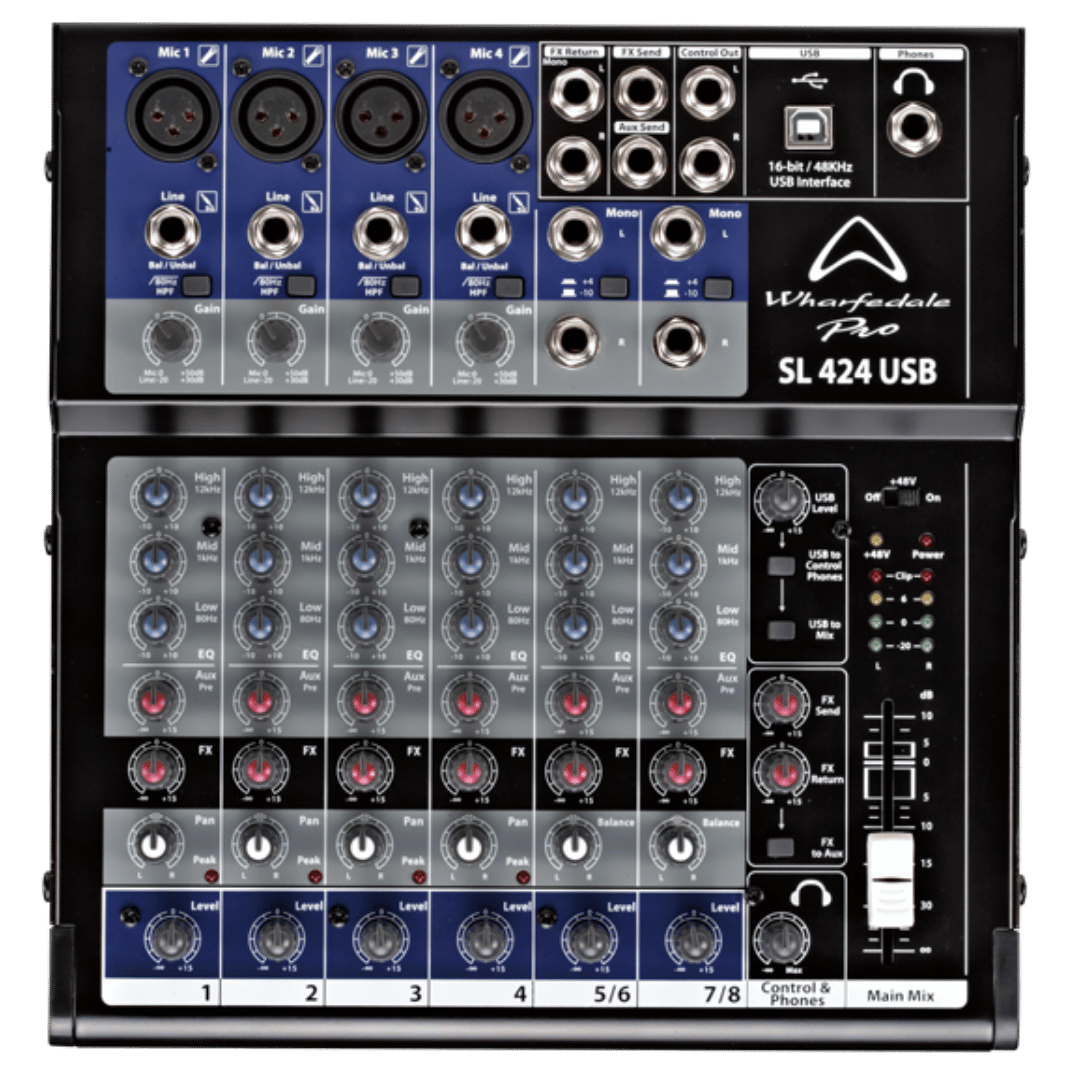

SL424USB
- 4 x XLR input
- 8 x 6.3mm line input
- 3-band EQ
- 2 x 6.3mm outputs
- 2 x XLR balanced outputs
- USB Interface
SL824USB
- 8 x XLR input
- 12 x 6.3mm line input
- 3-band EQ
- Insert points
- 2 x 6.3mm outputs
- 2 x XLR balanced outputs
- USB Interface
- 16 x internal FX
SL1224USB
- 12 x XLR input
- 14 x 6.3mm line input
- 3-band EQ
- Insert points
- 2 x 6.3mm outputs
- 2 x XLR balanced outputs
- USB Interface
- 16 x internal FX
PLug and Play
You don’t need any special ‘Wharfedale Pro’ driver software to make an SL mixer work perfectly with a Windows, Mac or Linux computer.
Simply connect the SL mixer to the computer with the USB cable and, because the mixer is a ‘Class Compliant’ USB audio device, it will simply use the internal driver software of your host computer. With the mixer connected and turned on, just select the USB audio driver in your system settings/device manager and suddenly you’ve got a digital audio connection to and from your computer.
2-channels into the computer and 2-channels out. All over the supplied USB cable.
Musical eq
An ultra musical 3-band EQ is available on all channels, with dedicated FX send and auxiliaries.
USB Audio Interface
With a built-in USB audio interface, the SL series enables a stereo in/out which can be used for playback of audio files from your PC or Mac, and can also record the master output of your mixing desk.
16-bit / 48 KHz recording ensures 2-channel CD quality audio, whether working in a live or studio environment.
16 Digital FX
SL824USB and SL1224USB feature the FX logic DSP processor which delivers a total of 16 effects. These include a variety of delays, reverbs, chorus, and rotary speaker algorithms, achieving a professional touch on your mix and lending itself to more creative sound engineering styles.
By name, the 16 FX are……
(1)Hall1 (2)Hall2 (3)Room1 (4)Room2 (5)Room3(6)Plate reverb1 (7)Plate reverb2 (8)Plate reverb3 (9)Chorus (10)Flange (11)Delay1 (12)Delay2 (13)Chorus/Room1 (14)Chorus/Room2 (15)Bypass (16)Rotary speaker.
All very useable, in the real-world!
AC power
SL series do not use a ‘wall wart’ external power supply. The AC cable is included and the internal transformer ensures smooth power delivery to the internal electronics.

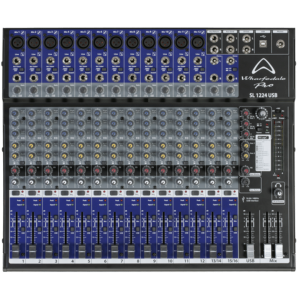

SL1224USB
SL824USB

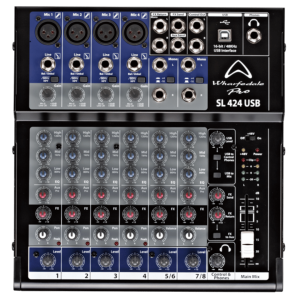

SL424USB
SPECIFICATIONS
| Model Name | SL424USB | SL824USB | SL1224USB |
|---|---|---|---|
| Channels | 8 | 12 | 14 |
| Inputs | 4 x XLR, 8 x 6.3 mm jack | 10 x XLR, 12 x 6.3 mm jack | 12 x XLR, 14 x 6.3 mm jack |
| Outputs | 2 x XLR, 2 x 6.3 mm jack | 2 x XLR, 2 x 6.3 mm jack | 2 x XLR, 2 x 6.3 mm jack |
| Headphone Output | 6.3 mm jack | 6.3 mm jack | 6.3 mm jack |
| Auxiliary sends | 1 | 2 | 2 |
| FX | Send / Return | 16x Effects: (1)Hall1 (2)Hall2 (3)Room1 (4)Room2 (5)Room3 (6)Platereverb1 (7)Platereverb2 (8)Platereverb3 (9)Chorus (10)Flange (11)Delay1 (12)Delay2 (13)Chorus/Room1 (14)Chorus/Room2 (15)Bypass (16)Rotaryspeaker | 16x Effects: (1)Hall1 (2)Hall2 (3)Room1 (4)Room2 (5)Room3 (6)Platereverb1 (7)Platereverb2 (8)Platereverb3 (9)Chorus (10)Flange (11)Delay1 (12)Delay2 (13)Chorus/Room1 (14)Chorus/Room2 (15)Bypass (16)Rotaryspeaker |
| EQ | 3 Band | 3 Band with HPF | 3 Band with HPF |
| Phantom Power | Yes | Yes | Yes |
| USB | 16 bit / 48 KHz | 16 bit / 48 KHz | 16 bit / 48 KHz |
| Signal To Noise Ratio | -127 dBu ±5 dBu Mic Pre Equivalent Input Noise | -127 dBu ±5 dBu Mic Pre Equivalent Input Noise | -127 dBu ±5 dBu Mic Pre Equivalent Input Noise |
| Frequency Response | 20 Hz – 20 KHz ±2 dB | 20 Hz – 20 KHz ±2 dB | 20 Hz – 20 KHz ±2 dB |
| Display | 4 Segment Level LED with power and Phantom Power indicator | 12 Segment Level LED with power and Phantom Power indicator | 12 Segment Level LED with power and Phantom Power indicato |
| Dimensions: (H x W x D) | 76 x 248 x 262 mm | 80 x 400 x 369 mm | 80 x 400 x 475 mm |
| Weight INCLUDES RACK MOUNT KIT | 2.7 kg / 5.95 lbs | 5.2 kg / 11.46 lbs | 6.85 kg / 15.10 lbs |
Downloads
Looking for a USB driver??
You don't need one. Just plug and play.
